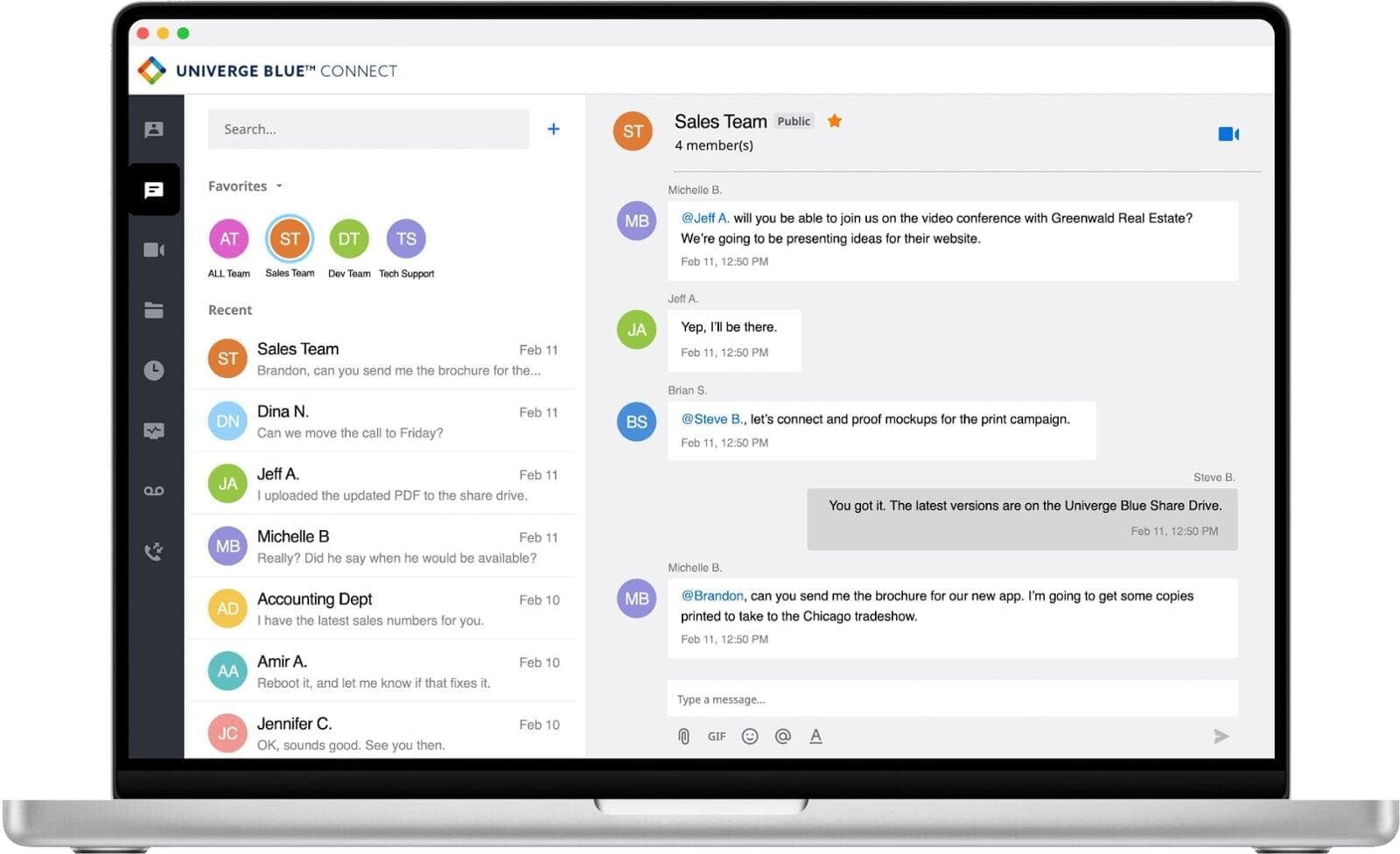

Univerge Blue Connect desktop app
The Univerge Blue Connect desktop app makes it easier than ever to work remotely, hybrid, in the office – anywhere! The desktop app brings everything you need to be productive into one easy to use interface.
CALLING

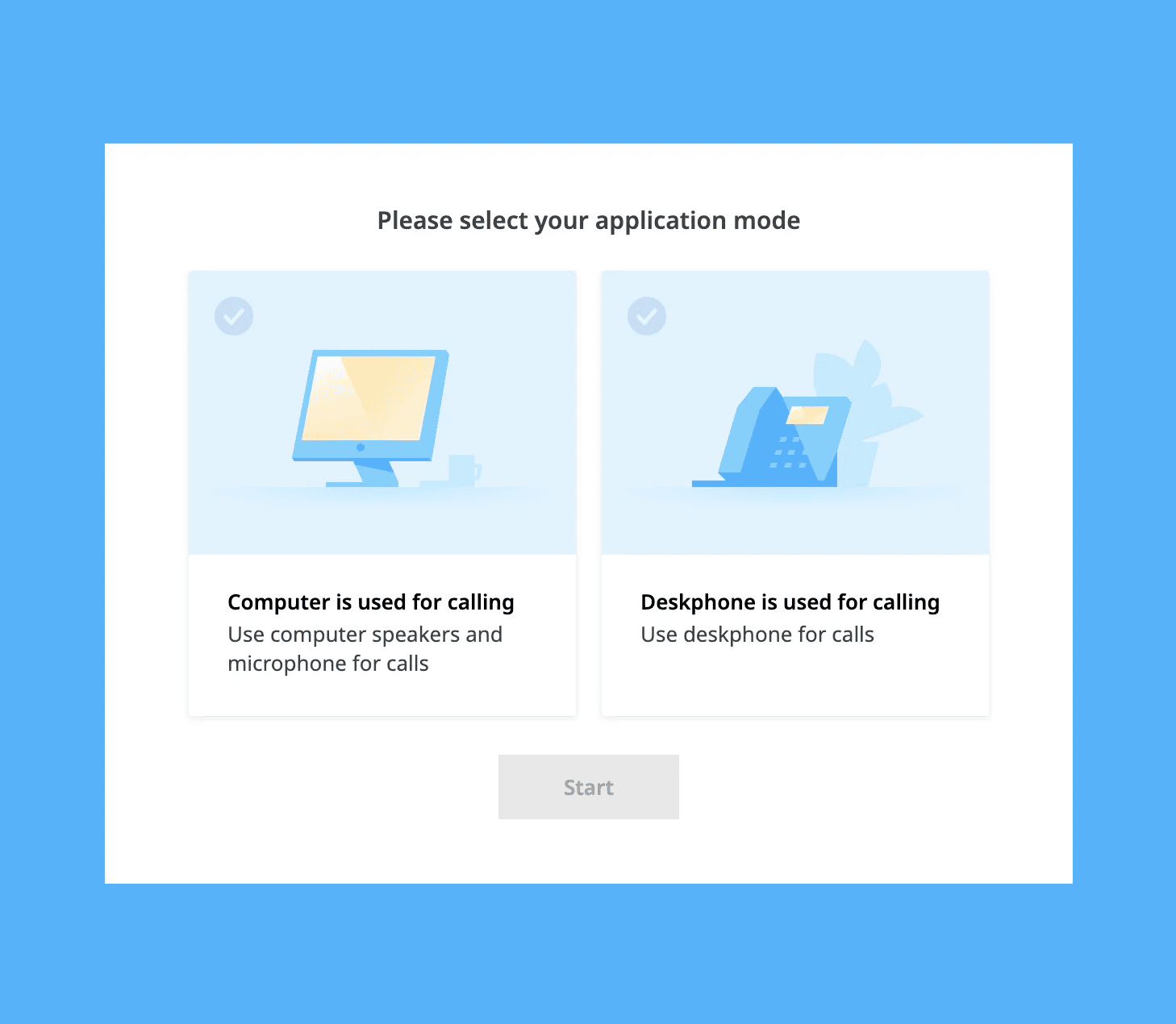

Calling modes
On your first sign in, the application will ask you to select your calling mode.
Computer softphone
In this mode, the application works as its own calling device. You can make, receive, and control phone calls directly through the application. A desk phone can be used in addition to the softphone, but is not required. This is a great option for a remote worker using their computer and a headset.
Desk phone controller
This mode allows the application to control your desk phone. Calls can be initiated through the application, but the call is actually placed through the physical desk phone. This mode enhances the experience for desk phone users by giving easy access to voicemail, call history, and contacts.
Placing calls
There are multiple ways to place calls in the Univerge Blue application.

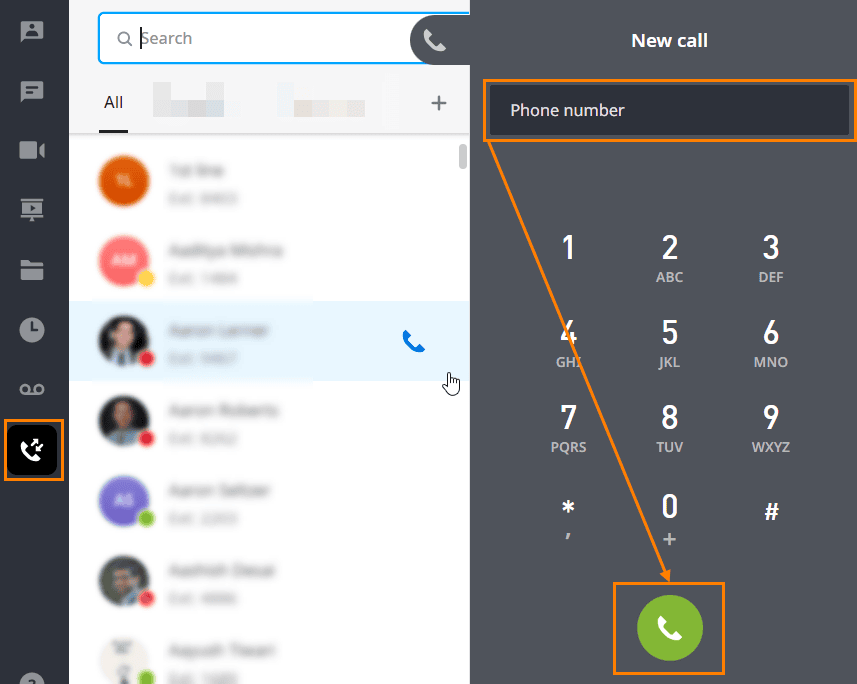

Placing a call through the phone dialer
- Click the phone icon on the left-hand black sidebar
- Use the dial pad to enter a phone number
(You may click digits with your mouse or type them with your keyboard) - Click the green phone icon to place the call
Placing a call through team chat
- Navigate to the chat of the individual you wish to call
- Click the blue phone icon on the top of the chat window

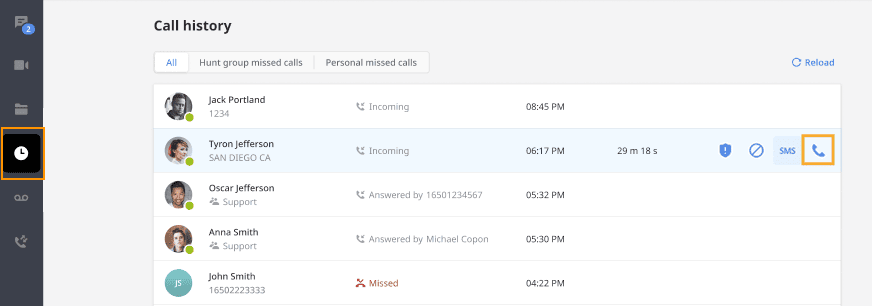

Placing a call through the call history tab
- Click the call history (clock) icon on the left-hand black sidebar
- Hover over the record to reveal more options
- Click the blue phone icon to place the call

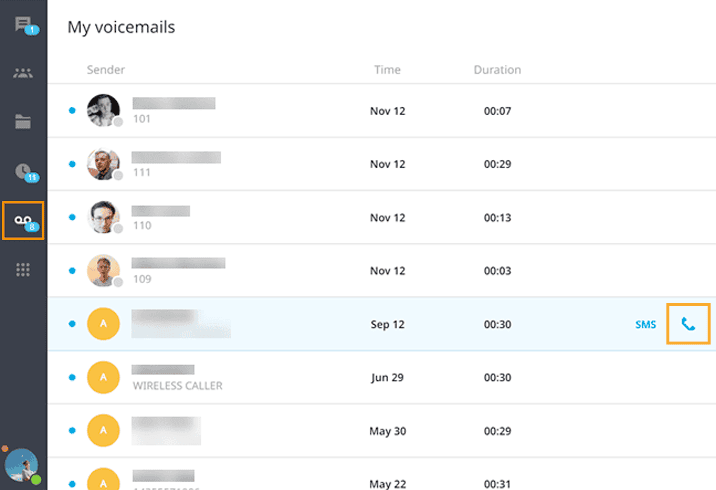

Placing a call through the voicemail tab
- Click the voicemail icon on the left-hand black sidebar
- Hover over the record to reveal more options
- Click the blue phone icon to place the call
Call flip
Call flip allows you to seamlessly move an active call to another device. For example, from your desktop application to your mobile phone.

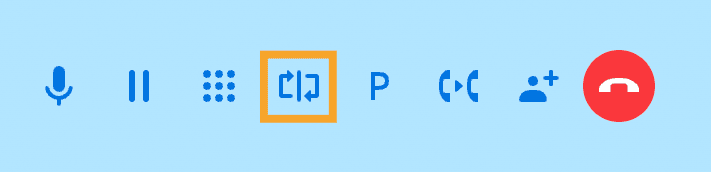

- While on an active call, click the call flip icon
- The call will be placed on hold
- All other devices assigned to you will begin ringing (desk phone, mobile, etc.)
- Answer the call on the desired device and continue the conversation
Call park/pickup
Parking a call is like placing it on hold, but with one major difference – a parked call gets placed in a communal "call parking lot" where another available coworker can pick them up. A call remains "parked" until someone picks it up again.
Parking a call

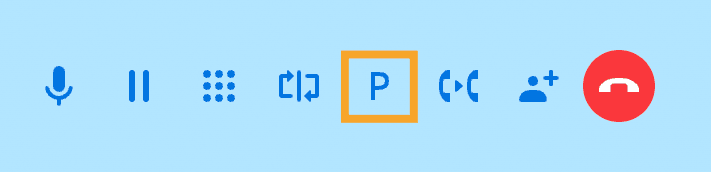

- On an active call, click the park icon
- An automated voice will tell you the number of the parking slot the call was placed in
(example: "call parked on extension 901") - The call can be picked up by anyone within the organization by calling that extension number
Picking up a call
- Dial the extension number of the parking slot from any phone

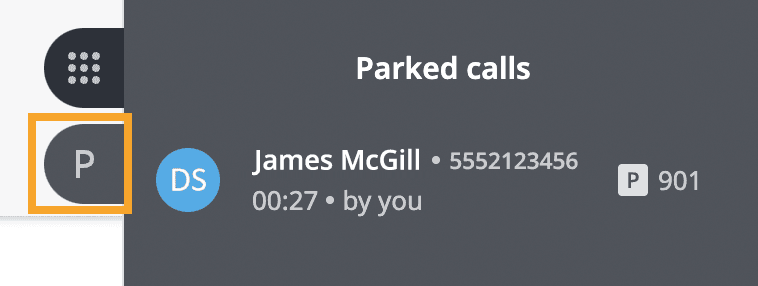

- Desktop app users can also visually monitor parked calls, and can click on the parked call to pick it up

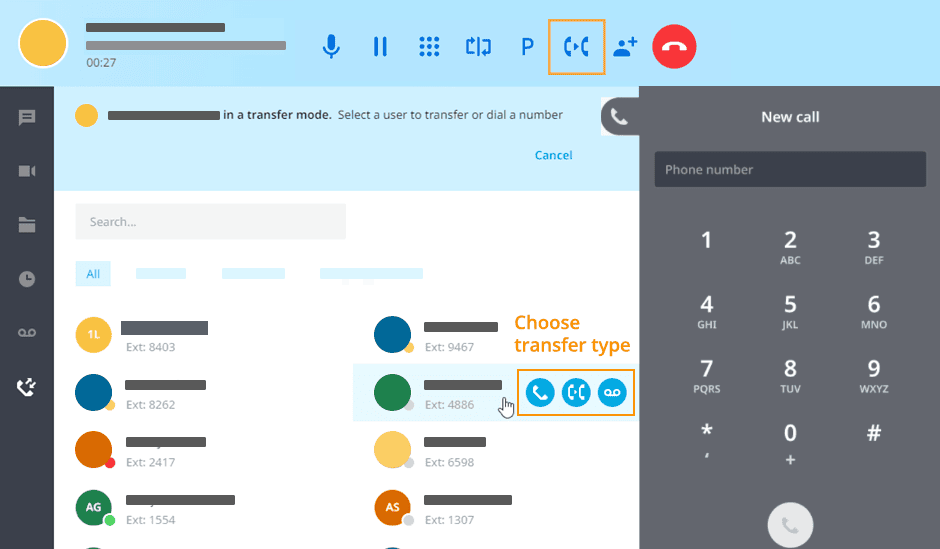

Transfer a call
Transferring a call to a teammate is easy, but it will help to understand the 3 different transfer types.

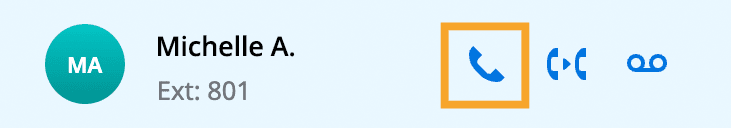

Warm transfer
Warm transfer allows you to consult with the party you are transferring a call to before completing the transfer.
- While on an active call, click the transfer icon
- Select a contact or use the keypad to type a phone number
- Click the warm transfer icon
- Your first call will be placed on hold, you will receive an incoming call from Caller 2; you will then need to select the Answer button to establish a call with caller 2
- Click on the Complete button to transfer the call

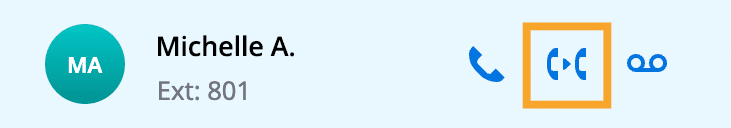

Blind transfer
The blind transfer allows you to transfer the call without having a conversation with another party.
- While on an active call, click the transfer icon
- Select a contact or use the keypad to type a phone number
- Click the blind transfer icon
Voicemail transfer
This option transfers a caller directly to a teammates voicemail box.
- While on an active call, click the transfer icon
- Select a contact

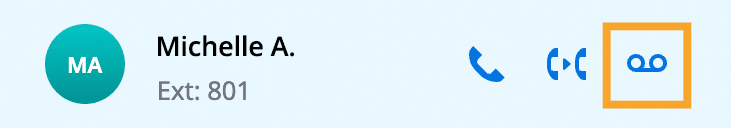

- Click the transfer to voicemail icon
Add a caller
You can conduct 3-way calls using your Univerge Blue application or desk phone.

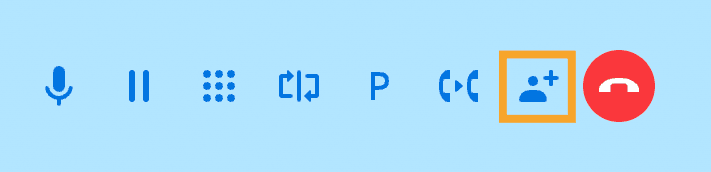

- Click the add caller icon (user with plus sign)

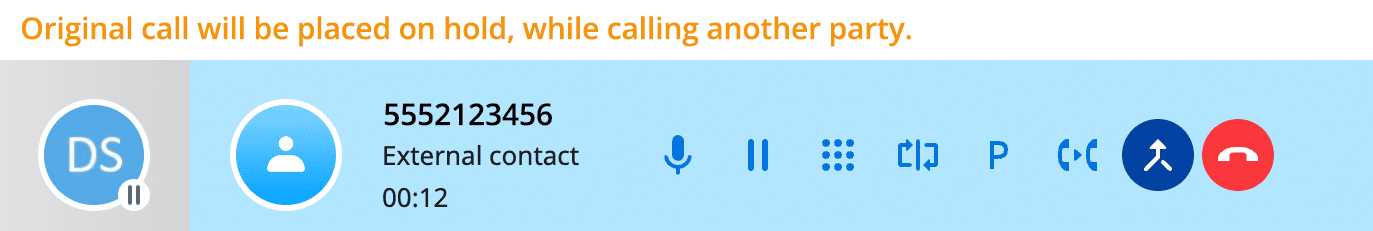

- The first call will automatically be placed on hold
- Use the dialer to type the number of the person you wish to add (or select a contact from your contact list)

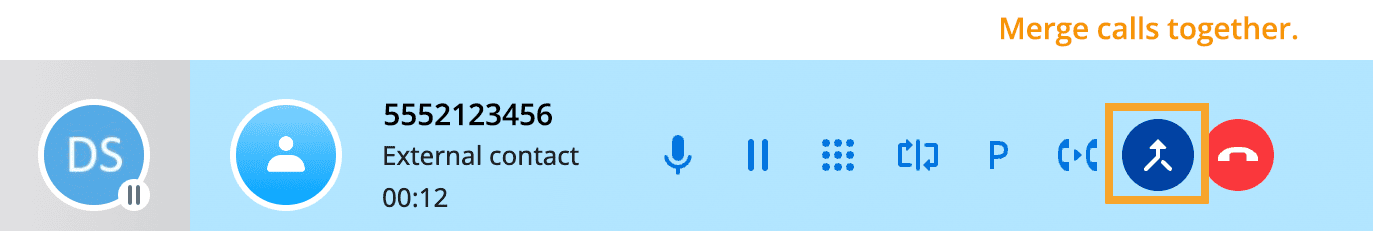

- Click the merge call icon to create the 3-way call
Note: larger conference calls can be conducted by using Univerge Blue Meet (included with your Connect plan). Please scroll down for instructions.
TEAM CHAT
Send a direct message
A direct message is a 1-on-1 conversation with another member of your organization.

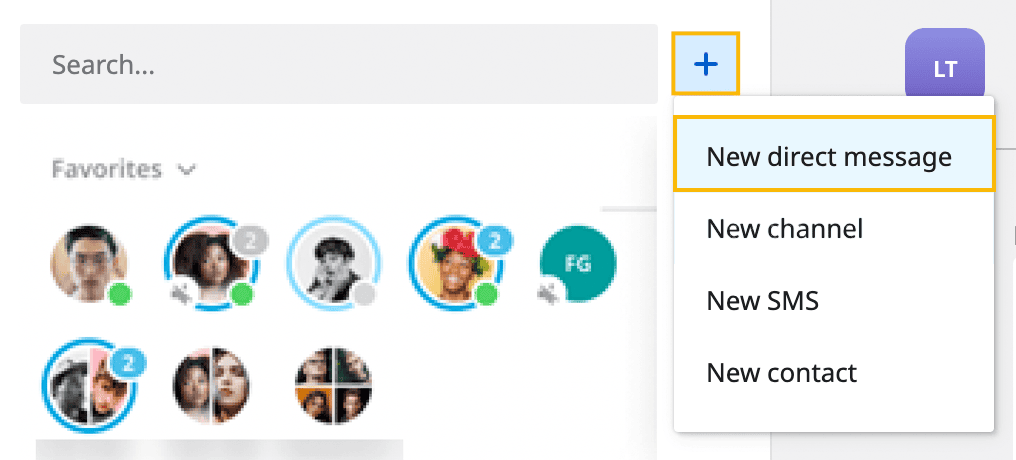

- Click the + icon next to the search bar
- Choose New direct message
- Type the name or email address of the contact you want to chat with
- Select the recipient
- Type your message
- Click the send icon or press "enter" on your keyboard

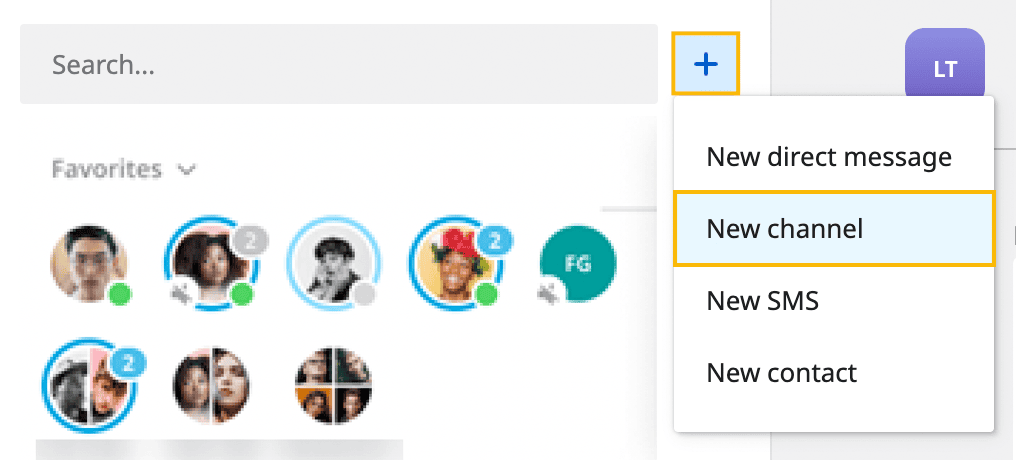

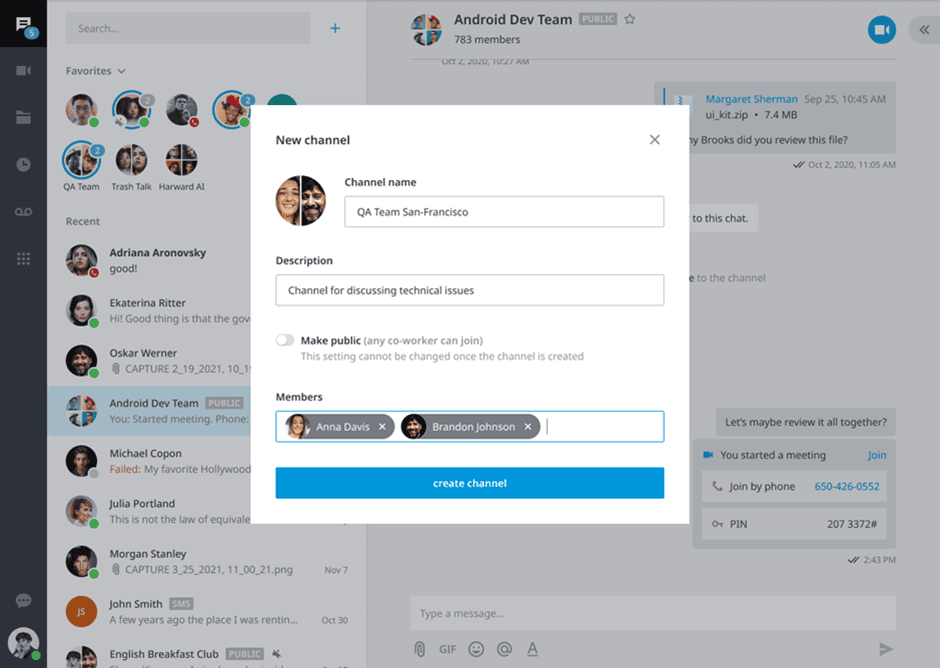

Create a channel
A channel is a group chat with multiple members of your organization.
- Click the + icon next to the search bar
- Choose New channel
- Name the channel
- Set privacy settings (public or private – see below)
- Type the name or email address of the contacts you want to add to the channel
- Select the recipients
- Type your message
- Click the send icon or press "enter" on your keyboard
Channel privacy settings
A chat channel can be set to either private or public.
Public channels
- Available for every user in your company
- You may search for public channels and join or leave them
- Other users may join your public channels
Public channels
- Available for its members on
- Users may only join by invite

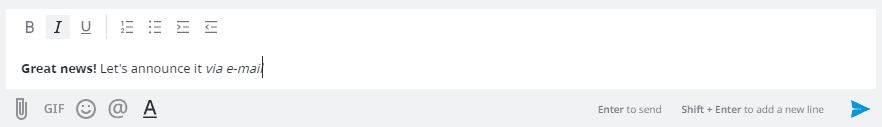

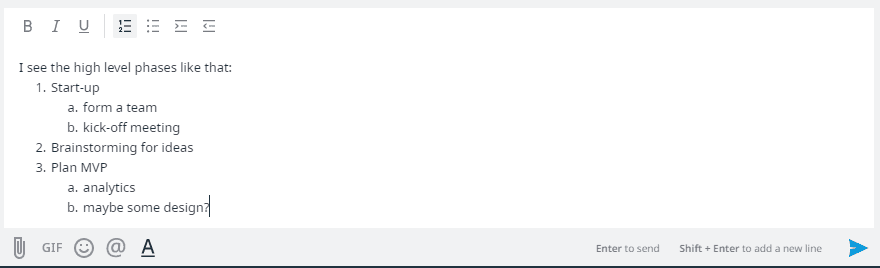

Text formatting
Use the rich text editor to format your chat messages.

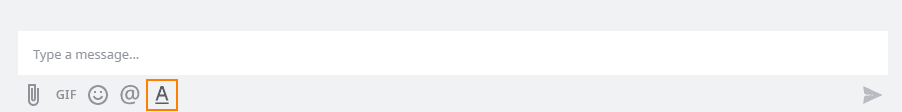

- Click the A icon below the text field to open the rich text editor
- Formatting options include: bold, italic, underline, and bulleted or numbered lists
Emojis and GIFs
Customize your chat with your favorite emojis or animated GIFs.
- Click thesmiley faceicon below the text field to open the emoji window
- Click the GIF icon to open the GIF window
- Make a selection, then click the send icon or press "enter" on your keyboard
Sending files
Files can be easily sent in both 1-on-1 or group messages.
Two ways to attach files:

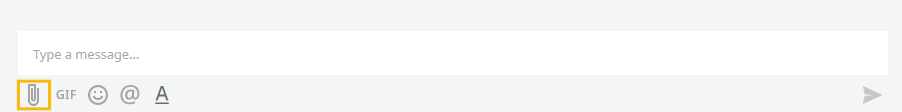

- Click the paperclip attachment icon below the text field
- Drag and drop a file directly into the chat window
Files will remain chat until they are deleted. If a user is deleted from your Univerge Blue account, their attachments will also be deleted.

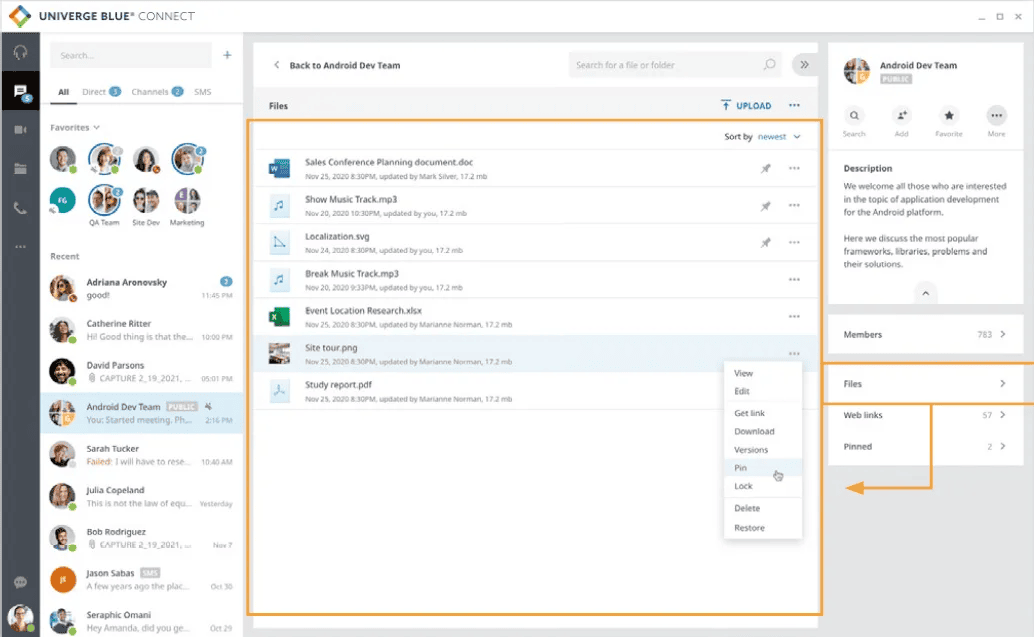

Filtering files
You can view the history of all the files that have been shared in a direct or group chat.
- Go to the desired chat (direct or group) in which the file was shared
- Click "Files" from the right-hand panel
- The list of files will be ordered by date
- Click the file name to view the file
- Click the "Download" link to download a copy of the file
- Click the "..." icon for more options

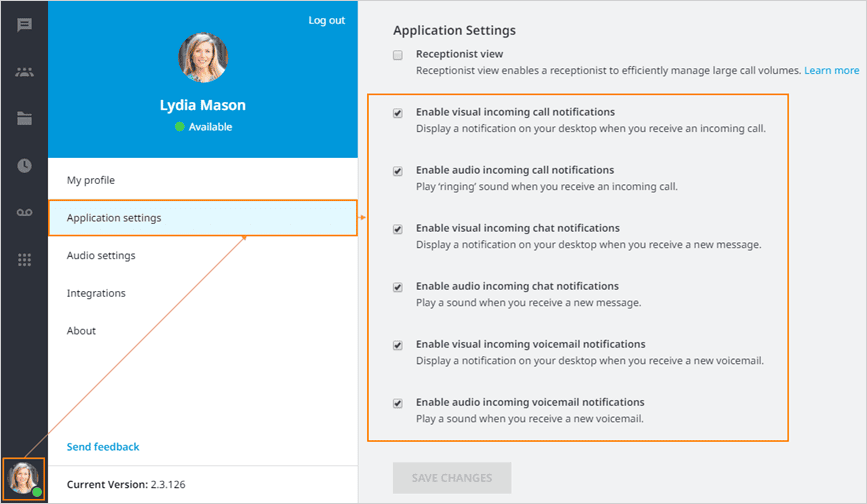

Chat notifications
Both audio and visual notifications can be personalized for incoming messages.
- Click on your avatar on the bottom left-hand corner
- Choose Application Settings
- Click or unclick the checkboxes to customize your notification settings
PRESENCE
Status descriptions
The presence feature helps to indicate which co-workers are available, busy, or away.
Your presence status is displayed as a colored dot on your profile avatar.
Important: Do Not Disturb/Out sick/On vacation/Off work puts all of a users devices in DND mode. It will affect not only the app it was activated on, but desk phones as well. If Do Not Disturb/Out sick/On vacation/Off work is activated on Desktop, Mobile app will not ring either and vice versa.
Icon | Status | Description |
---|---|---|
![]() | Available | Automatic or Manual Indicates that a user is available to chat or talk on the phone. |
![]() | Away/ on-break | Automatic Indicates that a user has been inactive for a certain period of time. This feature is designed to help prevent the user from appearing as available when they are not actively using the app. |
![]() | Busy | Manual When a user wants to indicate that they are busy and may not respond right away. |
![]() | Offline | Automatic When all user’s applications go offline. |
![]() | On a call / in a meeting | Automatic When a user is on a call or in a Univerge Blue meeting (MEET). |
![]() | Screen sharing | Automatic When a user is performing a screen share in a Univerge Blue meeting (MEET). In this status, call and chat notifications will be disabled. |
![]() | Do not disturb | Manual When a user doesn't want to get any notifications wants to send all incoming calls to voicemail. In this status, calls that came through a hunt group would still ring to you. |
![]() | Out sick | Manual When a user wants to notify that they are unavailable due to being sick. Out sick status works in the same way as Do not disturb. |
![]() | On vacation | Manual When a user wants to notify others that he or she is unavailable due to being on vacation. On vacation status works in the same way as Do not disturb. |
![]() | Off work | Manual When a user wants to notify others that he or she is unavailable due to being off work. Off work status works in the same way as Do not disturb. |

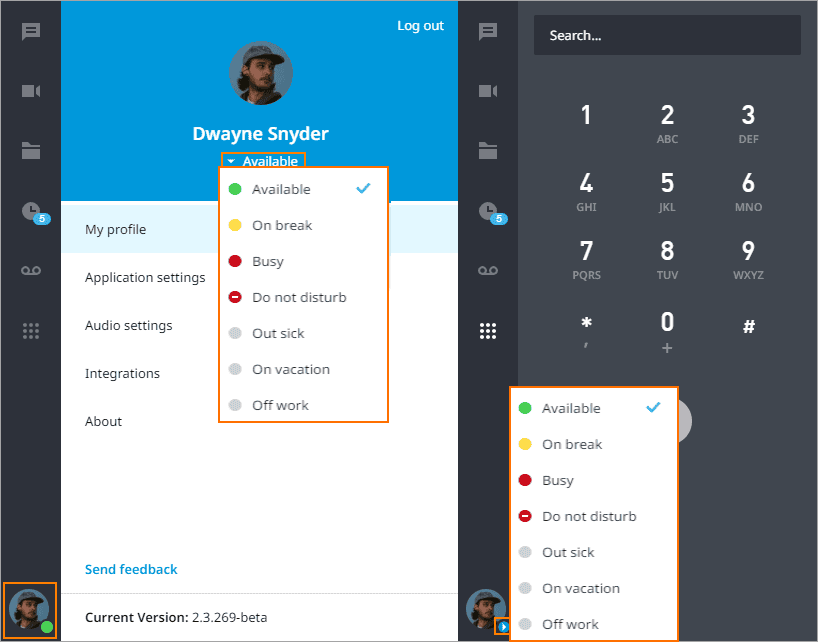

Changing your status
Choose from a set of predefined status messages, or add your own custom status.
- Click on your avatar, in the bottom-left corner
- Your current status is under your name
- Click on your current status
- A list of status options will appear
- Click on your desired status
- You can also set a custom status message by clicking "Set your status message"
VOICEMAIL

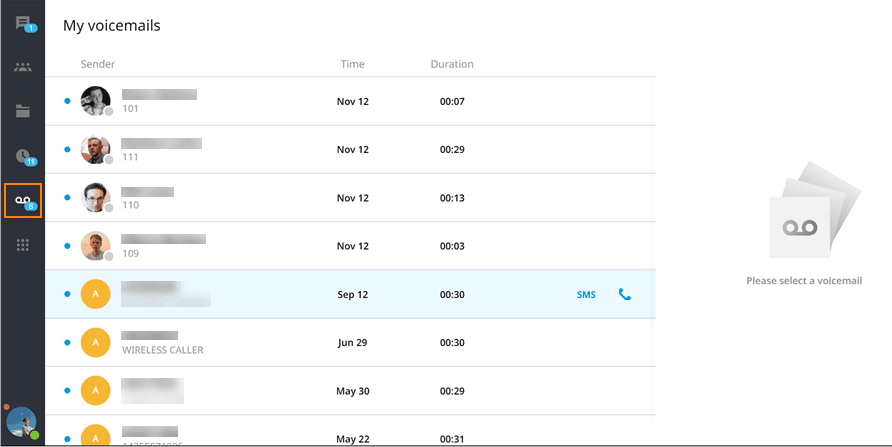

Checking new voicemail
- Click the voicemail icon on the left-hand black sidebar
- Voicemail messages will be arranged by date
- New messages will have a blue circle icon on the left of them

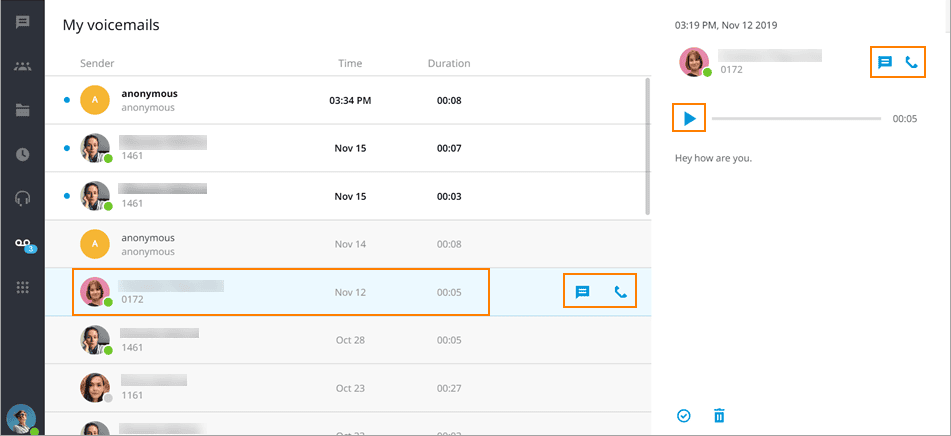

- Click a voicemail message to see its details
- The audio player will appear on the right side of the application window
- Click the play button to listen to the message
- Click the chat button to open chat with the person that left this message (if they are within your organizagtion)
- Click the handset button to call back the person

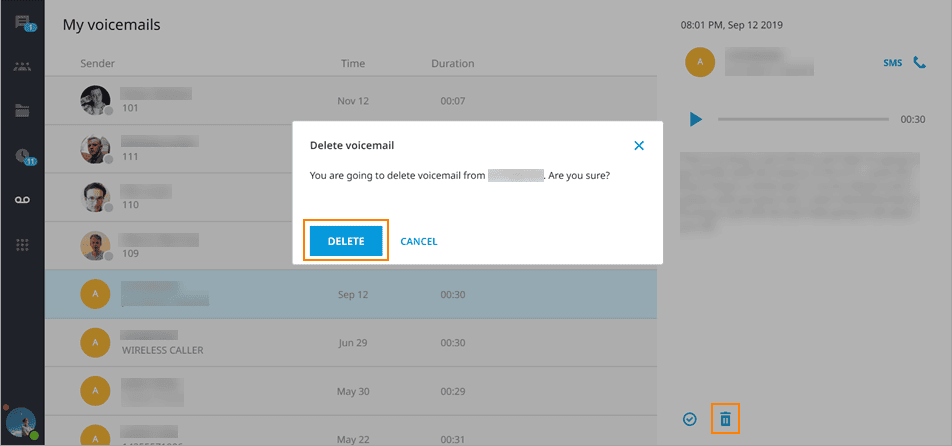

Deleting Voicemail
- Select the message by clicking it
- Click the Delete button on the bottom of the application window
- You’ll be prompted for confirmation on deleting the message
- Click Delete to confirm
- Deleting a message will delete it from all of your devices – including your desk phone
- Once deleted, the message can not be recovered

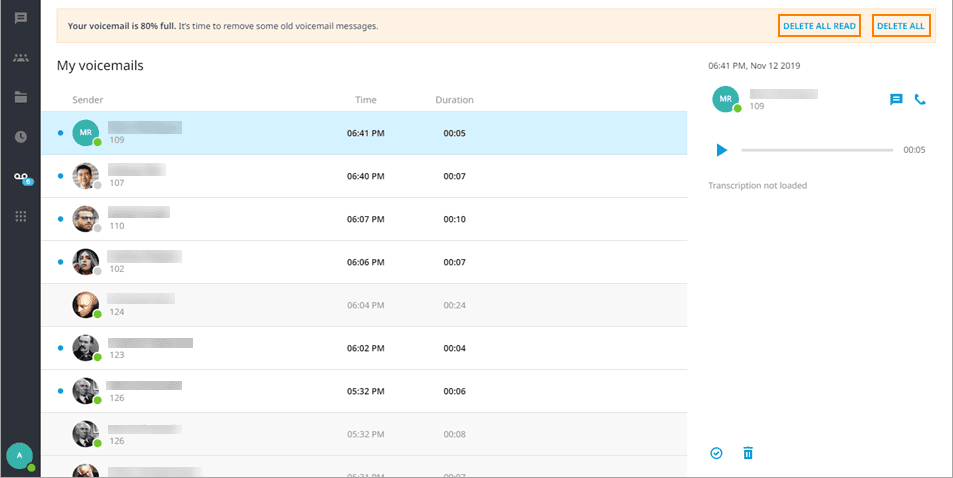

When the voicemail box becomes 80% full, you will see an orange notification banner with two buttons for bulk options: Delete all and Delete all read voicemail messages.

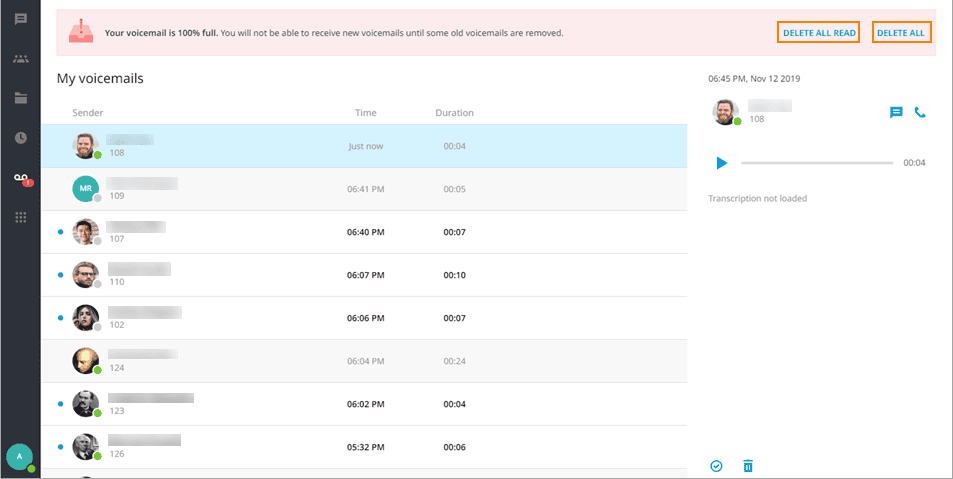

Important: when a voicemail box becomes 100% full, new voicemail messages will stop appearing in it.
Voicemail notifications
Both audio and visual notifications can be personalized for new voicemails.
- Click on your avatar on the bottom left-hand corner
- Choose Application Settings
- Click or unclick the checkboxes to customize your notification settings

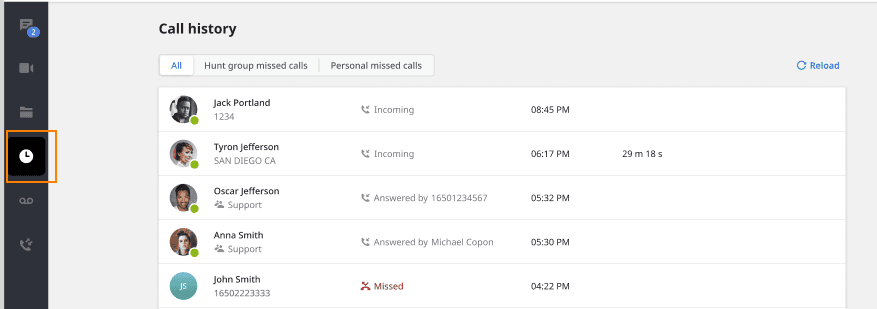

CALL HISTORY
The call history page allows you to view all calls or missed calls.
- Click the call history (clock) icon on the left-hand black sidebar

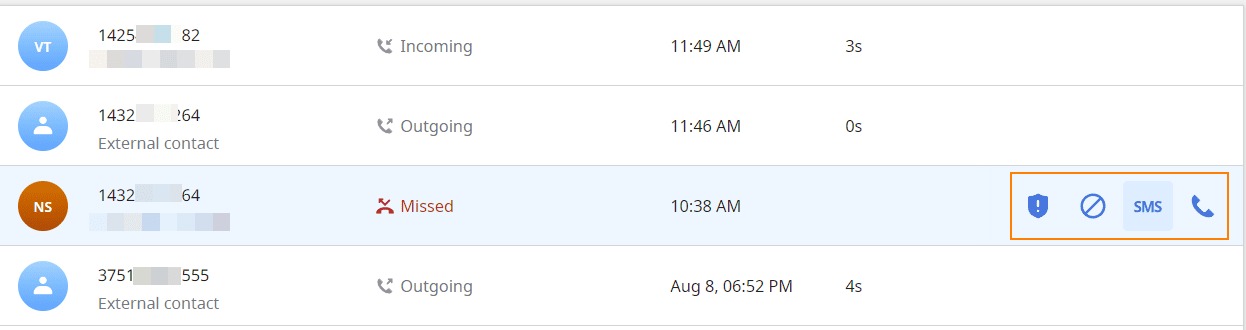

- Hover over the phone number to reveal more options including call back, report spam, and block number
VIDEO CONFERENCING

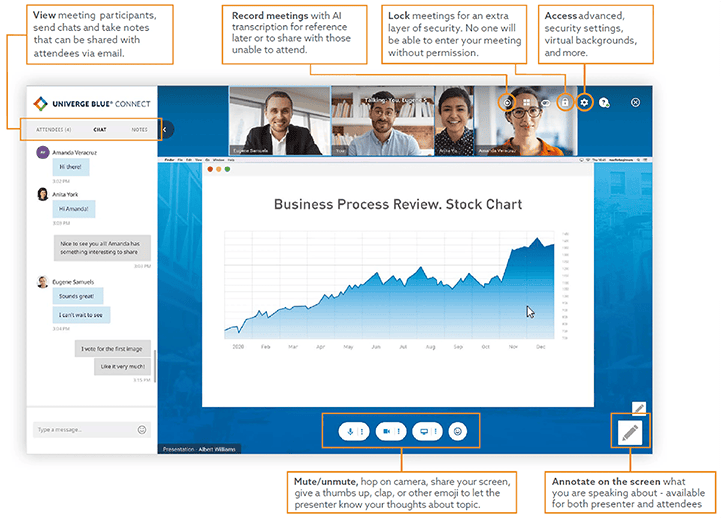

Univerge Blue MEET overview
Meet face-to-face with your team and clients with Univerge Blue Meet – included with every Connect plan. Increase collaboration with audio, video, screen sharing, and in-meeting chat from any device. Meet is fully integrated with the Univerge Blue Connect apps, so chat conversations can easily become video meetings.
Starting a meeting
There are multiple ways to start a new meeting in the Univerge Blue desktop app.
Starting a meeting
Use this when you want to start a meeting alone, and invite teammates or external parties at a time of your choosing. This would also be useful to start an audio conference call.

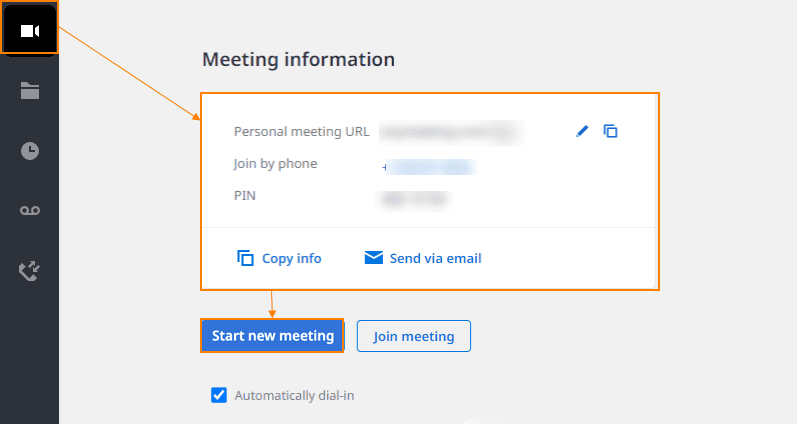

- Click the video camera icon on the left-hand black sidebar
- Click the blue "Start new meeting" button
- Your video conference will begin without any participants
(see below for inviting attendees)

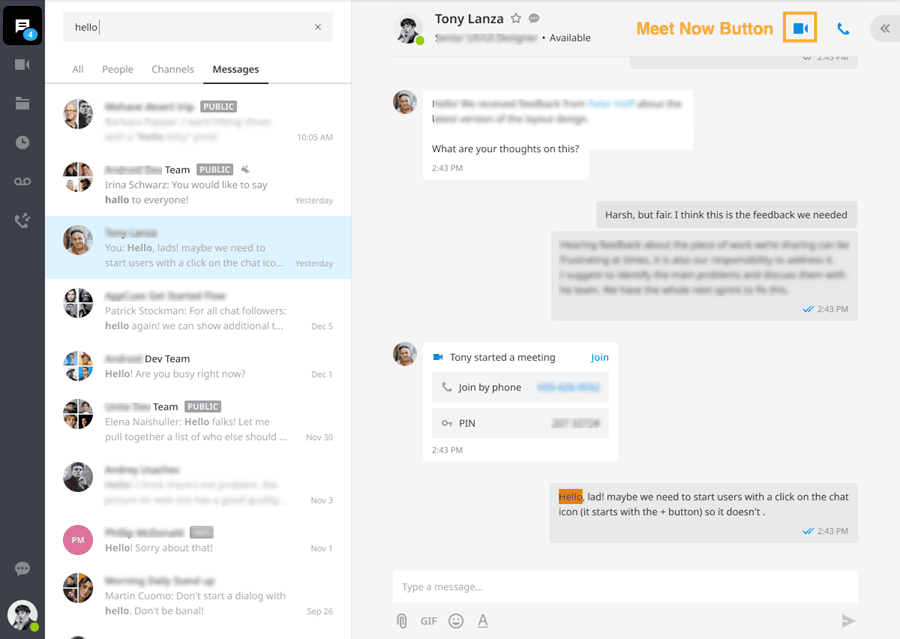

Starting a meeting through chat
Use this when when you want quickly start a meeting with teammates, and they will instantly receive an invitation right through chat.
- Click the chat channel you wish to invite to a video conference – this can be an individual or a group chat
- Click the blue video camera icon on the top of the chat window
- Your video conference will instantly begin
- An invitation link will automatically be sent to everyone in the chat channel

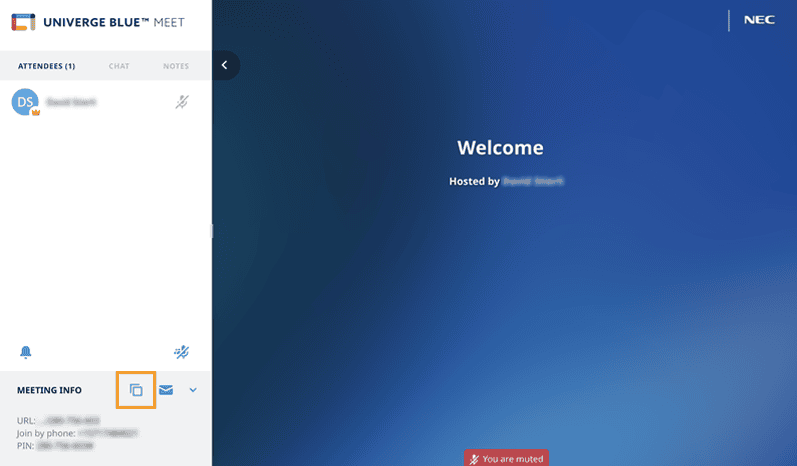

Inviting attendees
You can invite attendees to a meeting after it has already begun.

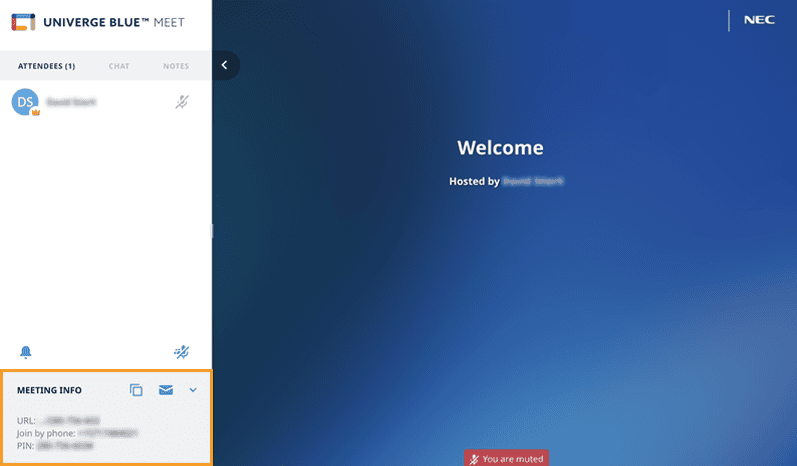

- Click the Meeting info link, in the bottom left-hand corner of the window
- Click the copy icon, then paste the meeting info into chat, or into an email to invite external participants

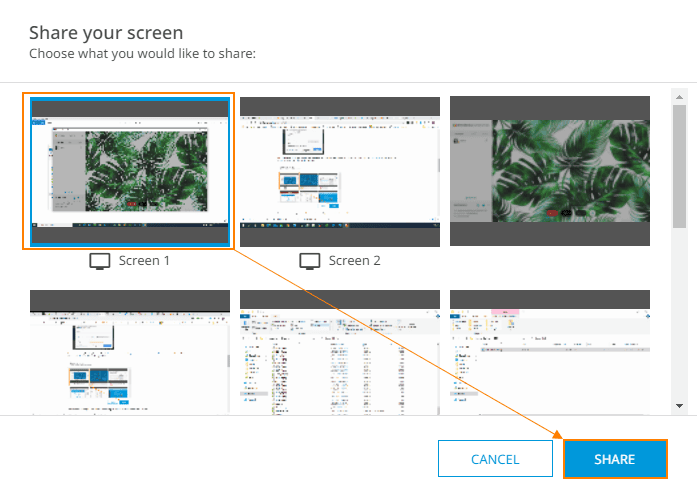

Sharing your screen
Screen Sharing features are open to all participants in a meeting and not limited to the meeting host only.

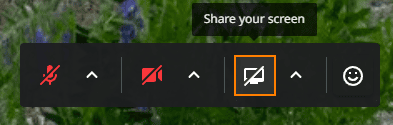

- Click the monitor icon
- A pop-up box will display all of your available screens
- Click on the screen you wish to share
- If you have multiple monitors, you can select the specific screen you wish to share
- You can also share a single application window
- Click the blue Share button

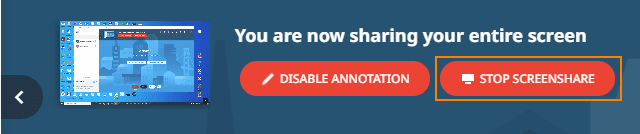

To stop sharing your screen, click the red Stop Screenshare button.

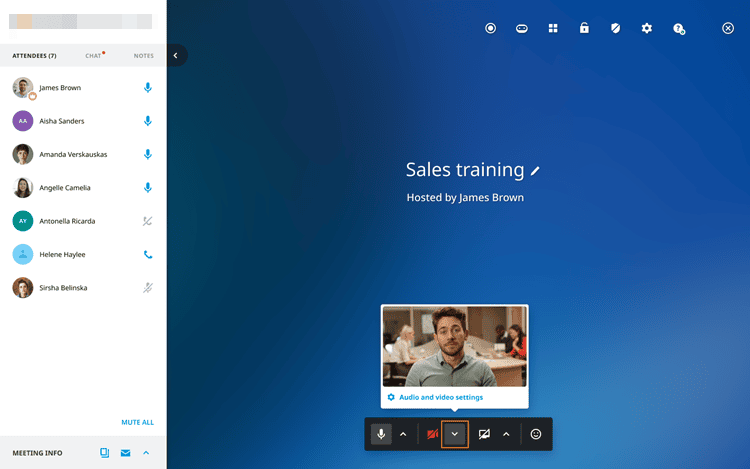

Mute controls
Both the meeting host and the participants have a set of mute controls.
Muting yourself:
- Click the microphone icon to toggle your microphone on or off
- An automated voice will tell you if you are "muted" or "unmuted"

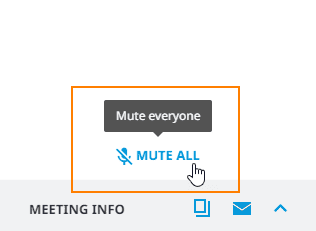

Muting attendees (host feature):
As a host, you have the ability to mute individual or all meeting participants.

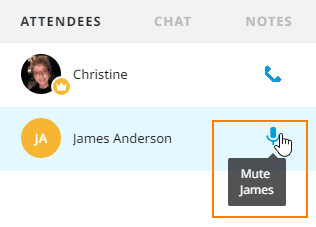

- To mute an individual, click the microphone icon next to the attendee's name
- To mute all attendees, click the "Mute All" button
Note: Attendees may unmute themselves at any time by dialing *6 on their phone
CONFERENCE CALLS
Starting a conference call
Audio conference calls are started the same way as video conference calls. The Univerge Blue application essentially works as a conference bridge.
- Click the video camera icon on the left-hand black sidebar
- Click the blue Start new meeting button
- Your audio conference will begin without any participants
(see below for inviting attendees)
Inviting attendees
- Click the Meeting info link, in the bottom left-hand corner of the window
- Click the copy icon, then paste the meeting info into chat, or into an email to invite external participants
Conference call controls
As a meeting host, you have the following controls available to you by using your phone's keypad during the call.
- Press *4 for a list of commands
- Press *2 to lock your meeting - *2 again to unlock your meeting
- Press *5 to mute all except yourself
- Press *6 to unmute yourself
- Press *9 to record your call - *9 again to stop recording (PRO plans only)
When you use these commands, you will hear an audio announcement confirming the command has been executed.
FILE SHARING

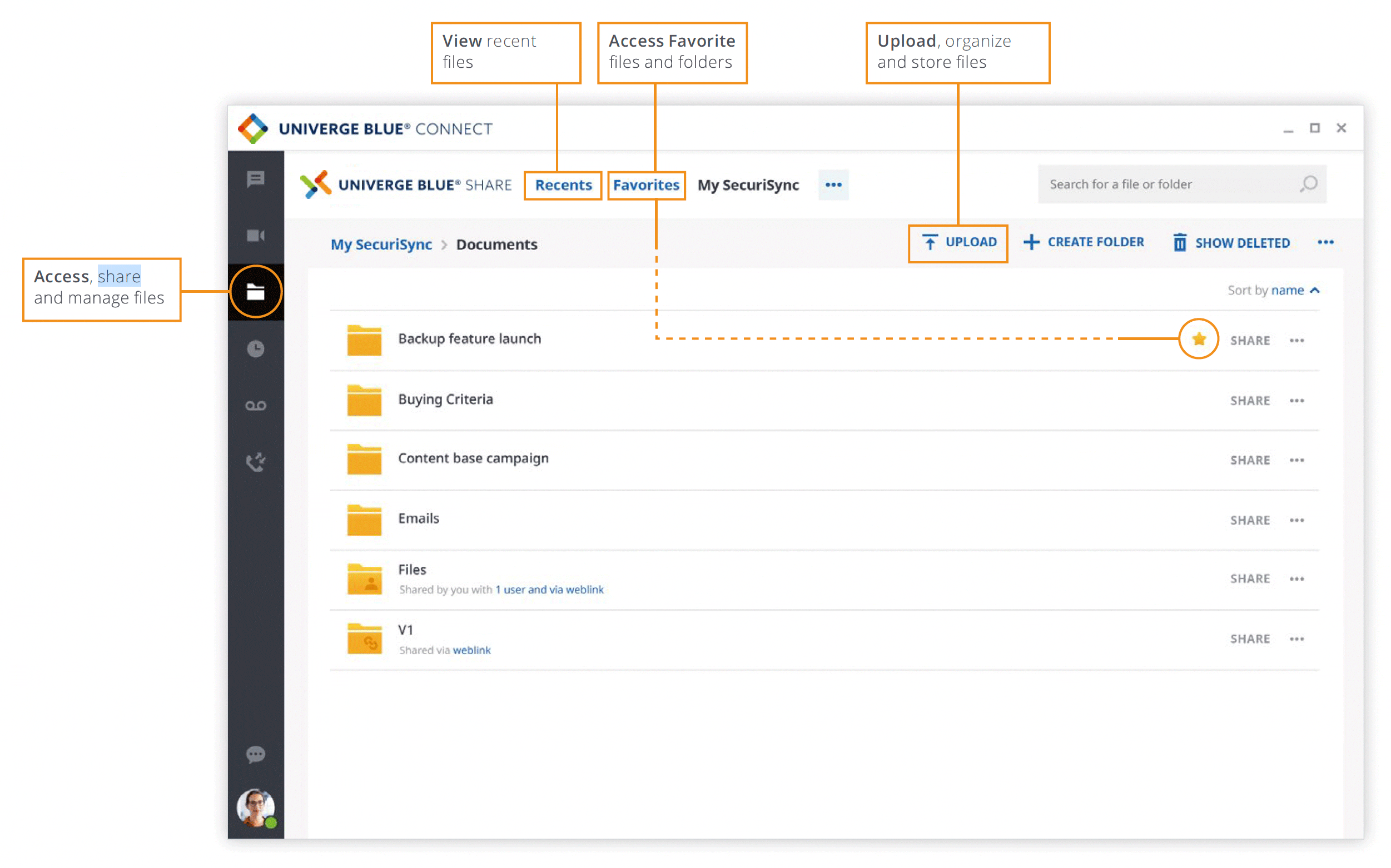

Univerge Blue SHARE overview
Univerge Blue Share allows for a better collaborative experience across your team.
Use Share to access, manage, store, and share files safely and securely with
anyone inside or outside your organization.
anyone inside or outside your organization.
It's a great tool for sending large files to colleagues, without the need to clutter your email with large attachments. You can also use it as a replacement for an FTP client, and allow outside vendors and partners to upload files to you – all while controlling restrictions and password protection.
Uploading files
- Click the share (folder) icon on the left-hand black sidebar
- Click the "My Blue Share" button
- Click the "Upload" button or drag and drop a file directly into the application
- To organize your files, you can click the "+ Create" button to create folders
Collaborating with teammates
Sharing and collaborating with other Connect users is easy!
Create a shared folder
A shared folder is a folder which you can share with other Connect users. When you share a folder with a teammate, they will see the folder within their SHARE application. You control what these users can do with the files, such as modify or view only.

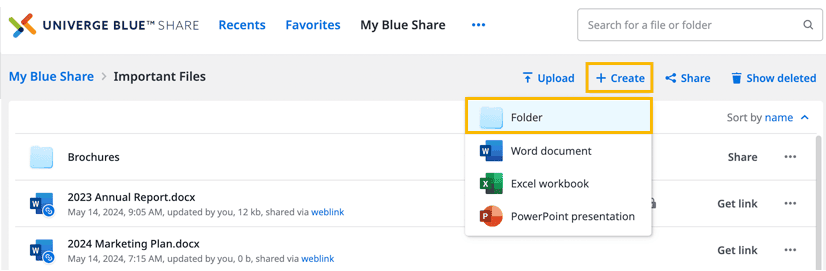

- Click the "+ Create" button
- Select "Folder" from the menu
- Click the "+ Create" button
- Select "Folder" from the menu
- Name the folder and click Create

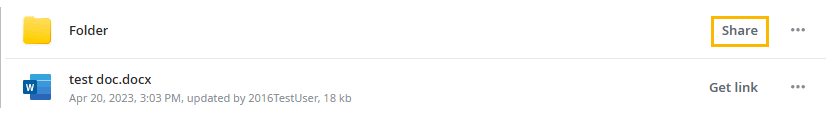

- Click the word "Share" to the right of the folder
- A pop-up box will open

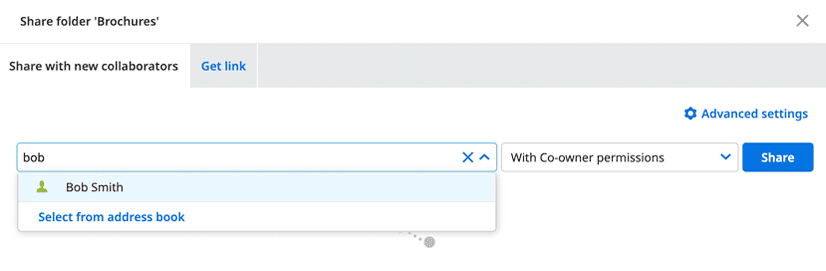

- Use the dropdown menu select all of the users you wish to share the folder with
- Use the permissions dropdown menu to specify what these users can do with the files and folders contained inside this shared folder (co-owner, modify, view-only)
- Click Share
- The users you selected will see an invitation to your shared folder, the next time they access Univerge Blue Share
Sharing files via web links
A web link is a link to your file that you can send to external contacts. Rather than attaching a file to an email, you can simply email the web link. And if you make changes to the file, people with the web link will always have access to see the latest version.
- Navigate to the file you wish to share

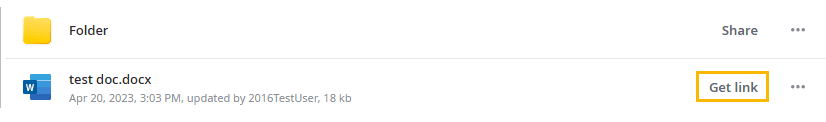

- Click the "Get link" button to the right of the file
- A pop-up box will open

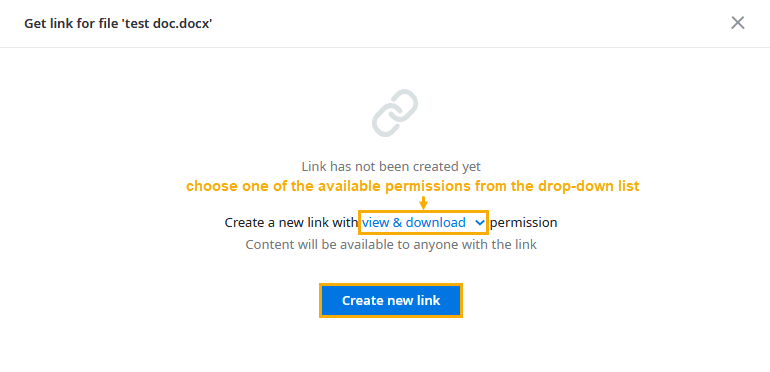

- By default, people with the web link will be able to view & download the file – If you wish to restrict them to view only, click the blue link that says "View & download" and change it to "View only"
- Click the "Create new link" button
- The link will be created with the name "Web link"

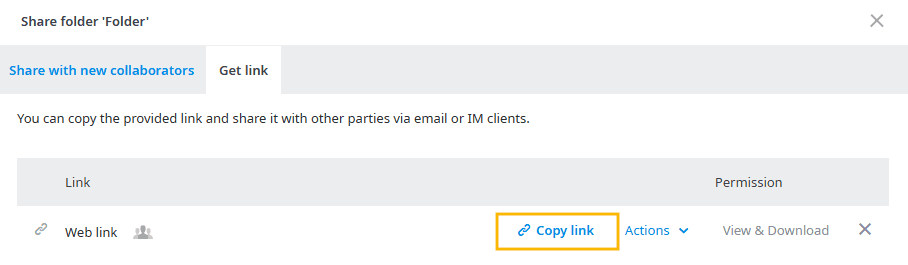

- Click the "Copy link" button to copy the link's URL
- Close the pop-up box
Once a web link has been created, you can come back and copy it anytime, by clicking the "Get link" button.
Files can also have multiple web links, with different sets of permissions.

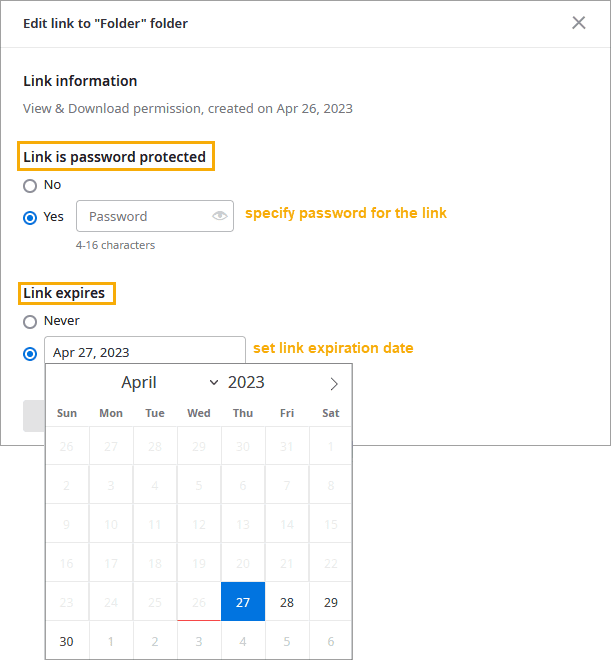

Password protecting web links
To add another layer of security, you can password protect a web link.
- Follow the steps above to create a web link OR click the "Get link" button next to a file
- A pop-up box will open

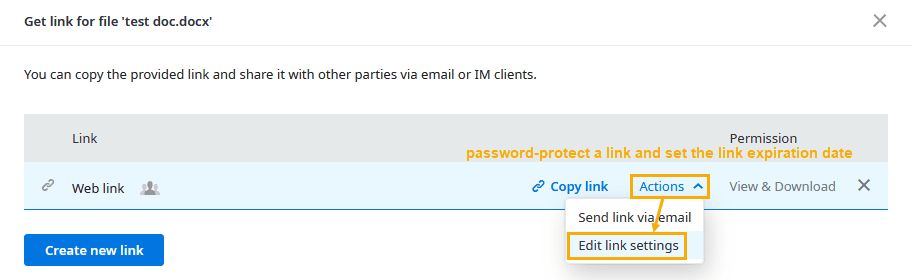

- Next to the web link, click the "Actions" button
- Choose "Edit link settings" from the menu
- A new pop-up box will open
- Under the submenu "Link is password protected", click the checkbox next to YES
- Define your password (4-16 characters)
- You can also set an expiration date for the web link
NOTIFICATIONS
You can customize how you would like to receive audio and visual notifications for incoming calls, new voicemails, and new chat messages.
- Click on your avatar on the bottom left-hand corner
- Choose Application Settings
- Click or unclick the checkboxes to customize your notification settings
Some features may require a Connect PRO or PRO PLUS plan.
