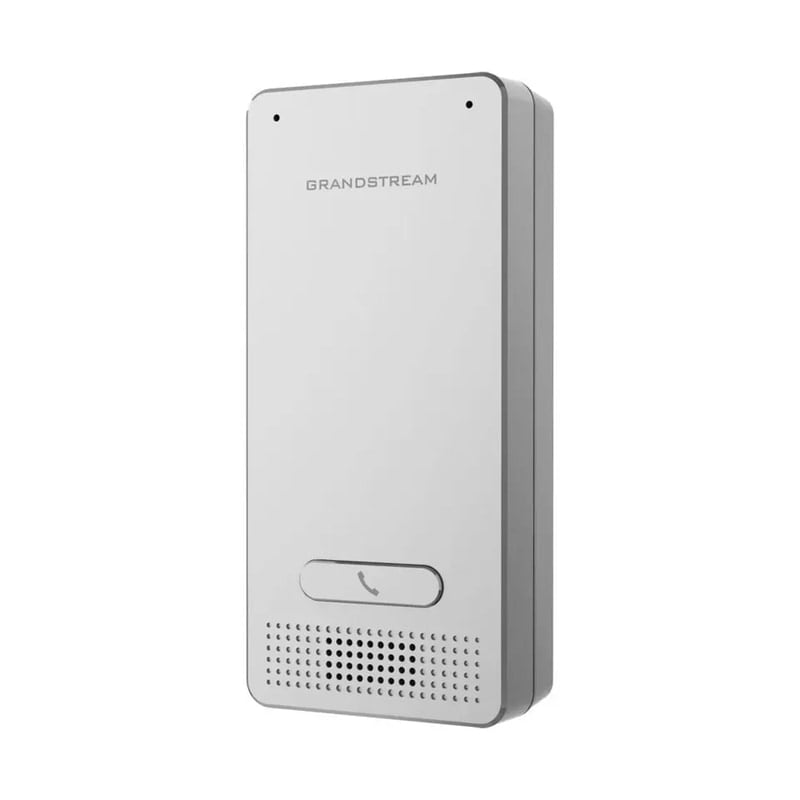

Grandstream Audio Door System GDS3702
$151.95 - $180.10
Tags:
- Built-in microphone and speaker
- Supports SIP calls to IP phones
- Metal casing for weatherproof and vandal resistance
- 2 Relay for Electric Lock and Alarm out, 2 Alarm In for Exit button and door sensor
- Integrated PoE for power & network connection
Warranty
Choose Quantity
Product Details
The Grandstream GDS3702 is an HD Audio IP Intercom Door phone designed for remote facility access control in buildings of all sizes. It features a built-in microphone and speaker for intercom functionality, supports electric lock integration for door control, and offers alarm-in and alarm-out support for security systems.
The GDS3702 includes SIP/VoIP technology with 2-way HD audio, an IP66 weatherproof casing, and vandal resistance.
When combined with Grandstream’s IP Phones, Wave mobile app, and other third-party IP devices, it provides a comprehensive solution for access control and intercom needs.
Network Connection
- 10M/100M Auto-sensing
- PoE IEEE 802.3af Class3
Audio
- SIP/VoIP Support: Yes, broad interoperability
- Audio Input: Built-in microphones up to 1.5m
- Audio Output: HD loudspeaker 2W, up to 3m
Power Supply
- PoE IEEE 802.3af Class3
- 12VDC /1A (AC power adapter not included)
Button
- 1 call button with Blue LED backlight
Input/Output
- Input: 2 Optocoupler Input, Vin<15V, for door sensor or other low voltage device
- Output: 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage device
Mounting
- On-Wall, In-Wall (Mount Kit required, Sold separately)
Protection
- Waterproof Certificate: IP66 (EN60529)
- Vandal Resistance: IK10 (IEC62262)
Dimension (HxWxD) and Weight:
- On-Wall: 173mm x 80mm x 36mm
- In-Wall: 217mm x 120mm x 11.6mm
