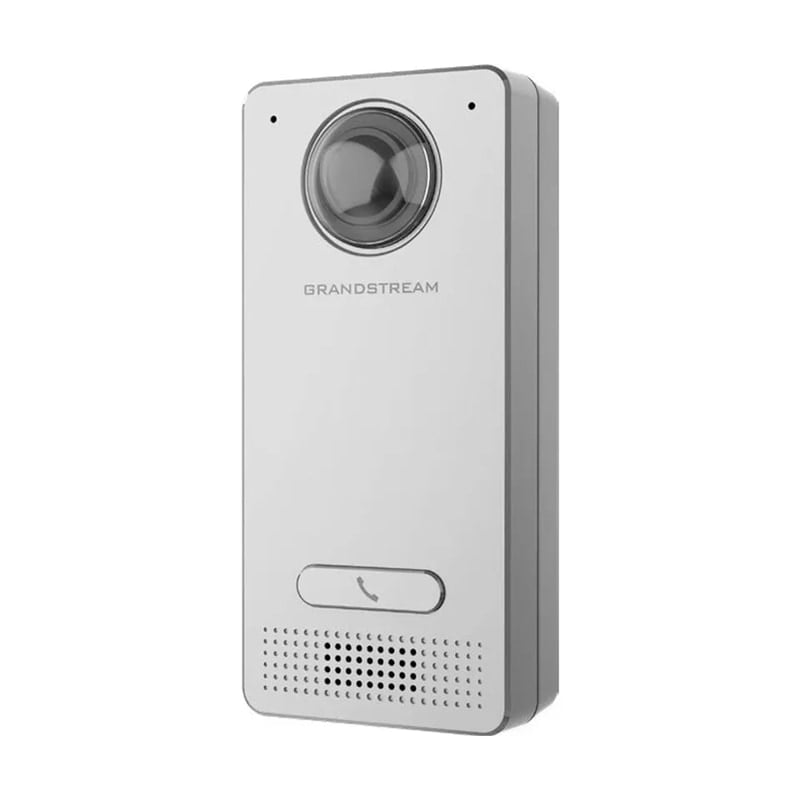

Grandstream Video Door Phone GDS3712
$268.95 - $319.20
Tags:
- Powerful video resolutions up to 1080p
- Built-in hemispheric camera allows for 180-degree wall-to wall coverage
- Supports motion detection
- SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
Warranty
Product Details
The Grandstream GDS3712 is a versatile IP Video Intercom System and high-definition IP surveillance camera for building access control and security monitoring. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms, it ensures exceptional performance with no blind spots.
Key features include:
- Industry-leading SIP/VoIP for 2-way audio and video streaming to smartphones and SIP phones, compatible with GDS management software.
- Integrated PoE for easy installation, motion detection for security, and lighting control switches.
- Management compatibility with GSURF Pro and any ONVIF-compliant video management system.
- Flexible HTTP API for seamless integration with third-party applications and surveillance systems.
Combined with Grandstream’s IP phones, video phones, and Wave mobile app, the GDS3712 offers a complete solution for access control, video intercom, and security recording needs.
Network Connection
- 10M/100M Auto-sensing
- PoE IEEE 802.3af Class3
Audio
- SIP/VoIP Support: Yes, broad interoperability
- Audio Input: Built-in microphones up to 1.5m
- Audio Output: HD loudspeaker 2W, up to 3m
Video
- Video Compression: H.264 High Profile / Main Profile / Baseline Profile, Motion JPEG
- Image Sensor Resolution: 1/2.7”, 2 Megapixel, 1920H x 1080V
- Lens Type: 1/2”, F2.5, FOV: 180°(W) x 150°(H)
- Max Video Resolution: 1920x1080
- Max Frame Rate: 30 frames per second
- Wide Dynamic Range: Yes, up to 120dB
- Video Bit Rates: 128 Kbps to 4 Mbps, multi-rate for preview & recording
- Embedded Analytics: Motion detection (up to 4 privacy masks)
- Snapshots: Triggered upon Events, Send via email and/or FTP
- Multi-Stream Resolution:
- Primary video stream: 1920 x 1080 resolution for continuous full HD recording
- Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
- Third video stream: 320 x 240 resolution for smartphone applications
Power Supply
- PoE IEEE 802.3af Class3
- 12VDC /1A (AC power adapter not included)
Button
- 1 call button with Blue LED backlight
Input/Output
- Input: 2 Optocoupler Input, Vin<15V, for door sensor or other low voltage device
- Output: 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or other relative high voltage device
Mounting
- On-Wall, In-Wall (Mount Kit required, Sold separately)
Protection
- Waterproof Certificate: IP66 (EN60529)
- Vandal Resistance: IK10 (IEC62262)
Dimension (HxWxD) and Weight:
- On-Wall: 173mm x 80mm x 36mm
- In-Wall: 217mm x 120mm x 11.6mm
