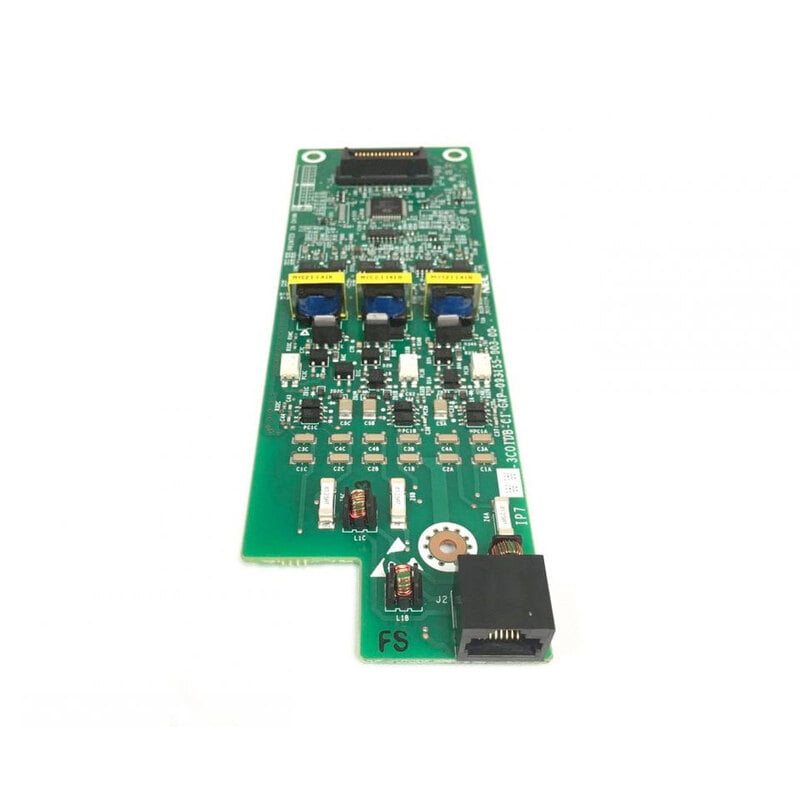

NEC SL2100 3-Port CO Trunk Daughter Board BE116510
$99.00
- Provides (3) standard loop-start CO trunk ports
- Max (4) per chassis
- Max (12) per system
SKU
SL2-BE116510 Model
IP7WW-3COIDB-C1 Choose Quantity
Product Details
Provides interface for (3) standard loop-start CO trunks.
Equipped with (1) 8-conductor interface jack.
Installation
Must be installed on one of the following cards:
- 8-Port digital / 2-port analog station card (082U)
- 8-Port analog station card (008U)
- CO trunk mounting card (000U)
Max (1) 3-port CO trunkcard can be mounted per 082U, 008U, or 000U.
Provided hardware:
(1) metal standoff, (2) plastic standoffs, (1) mounting screw
Max Limit
Max (4) per chassis (main or expansion).
Max (12) per system.
Notes
There is no power failure transfer circuitry.
