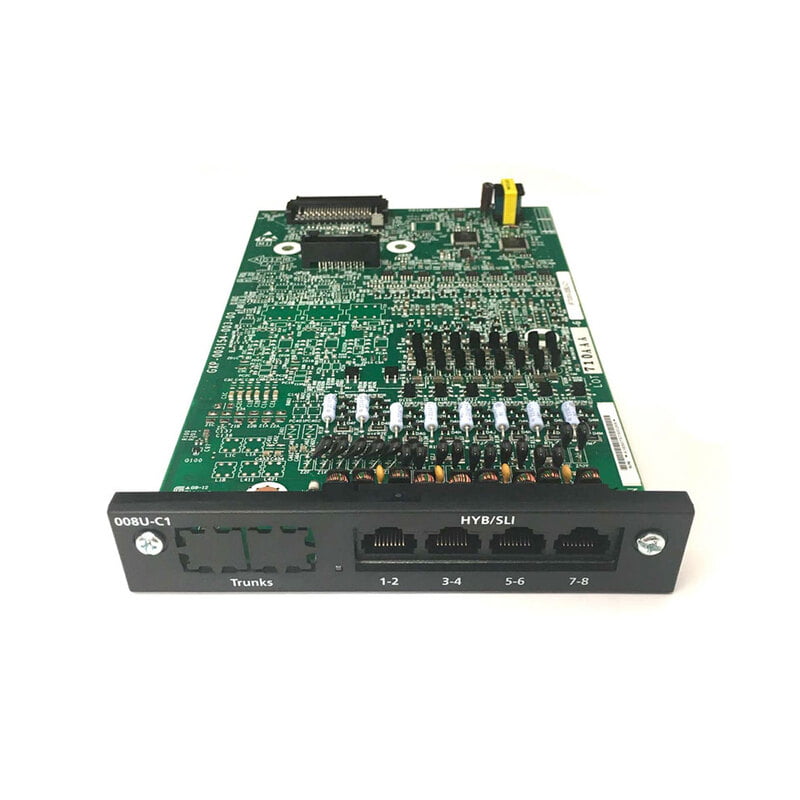

NEC SL2100 8-Port Analog Station Card BE116507
$220.00
- Provides (8) analog station ports
- Installs in any universal slot
- Max (4) per chassis
- Max (12) per system
SKU
SL2-BE116507 Model
IP7WW-008U-C1 Choose Quantity
Product Details
Provides interface for (8) analog stations (not NEC Doorboxes).
Equipped with (4) 8-conductor interface jacks.
Installation
Installs in any universal slot of main or expansion chassis.
Mountability
This card can be used to mount either (1) 3-Port CO trunk daughter board (3COIDB) or (1) PRI daughter board (1PRDB).
Max Limit
Max (4) per main or expansion chassis.
Max (12) per system.
Notes
NEC Doorboxes cannot be connected to the 8-Port Analog Station Card.
NEC Doorboxes must be connected to the 8-Port Digital / 2-Port Analog Station Card (BE116506).
