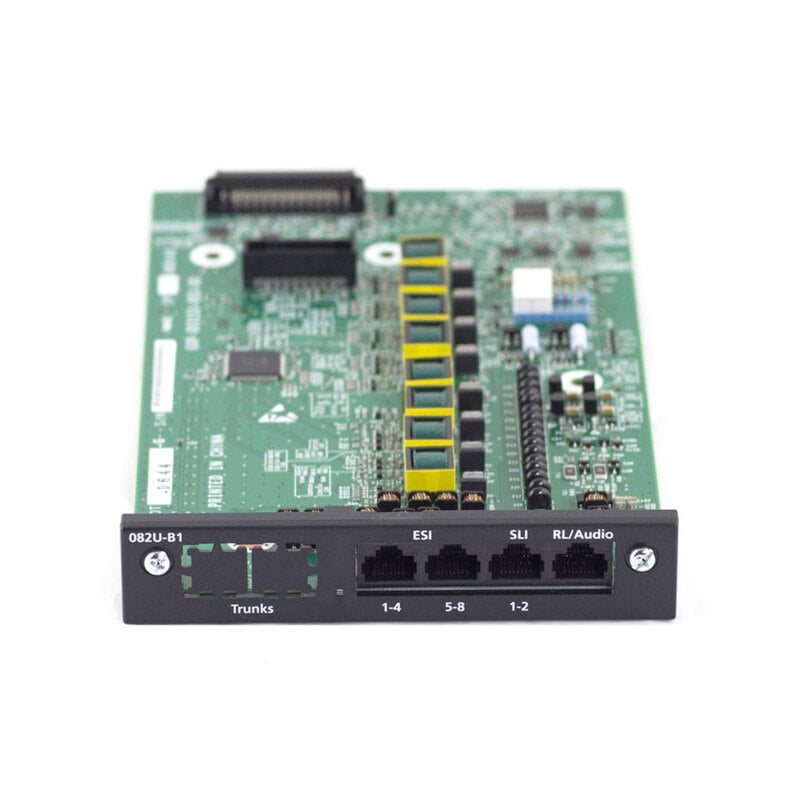

NEC SL2100 8-Port Digital / 2-Port Analog Station Card BE116506

Provides interface for (8) digital stations (12/24-button telephones and DSS consoles) and (2) analog stations.
NEC Doorboxes can be connected to the analog station ports – up to (6) max per system, (2) max per card.

Also provides interface for:

• Music-on-hold or background busic source
• External paging zone

Equipped with (4) 8-conductor interface jacks.

• (2) for (8) digital stations
• (1) for (2) analog stations (or doorboxes)
• (1) for Music-on-Hold or background music input, and external paging zone output, and (2) relay circuit connections

Relay Circuits

The (2) relay circuits can be used for:

• Door-strike control, when analog ports are used for doorboxes
• Control for Music-on-Hold or background busic source
• Control of External Paging Equipment

Installation

Installs only in universal slots 1-3 of main or expansion chassis.

Mountability

This card can be used to mount either (1) 3-Port CO trunk daughter board (3COIDB) or (1) PRI daughter board (1PRDB).

SL2100 Audio Connections

An SL2100 system allows the following maximum audio connections:

• (1) Music-on-Hold source
• (1) Background Music source *
• (3) External Paging Zones

* Background Music source can be used as a second Music-on-Hold source

Each 8-Port Digital / 2-Port Analog Station Card provides two audio interfaces:

• (1) for music (MOH or BGM)
• (1) for an External Paging Zone

Max Limit

Max (3) per main or expansion chassis.
Max (9) per system.
